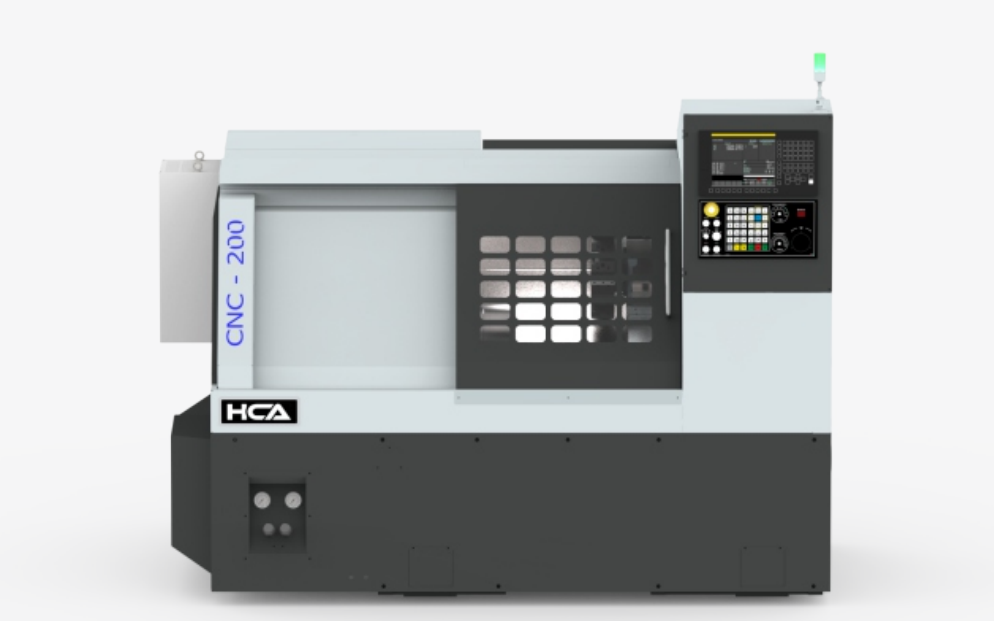

The CNC-200 Series is a spacious and high-performance CNC machine designed for precision machining tasks. With a robust FG300 structure, it ensures rigidity and stability, minimizing torsional stresses during dynamic operations. Featuring X-axis travel of 180mm and Z-axis travel of 300mm, it supports a maximum turning diameter of 330mm. The machine is equipped with a versatile servo turret (available in 8 or 12 stations), precision-ground LM ball screws, and programmable tailstock, enabling smooth, precise, and automated operations. It handles a wide range of materials and applications, ensuring flexibility, durability, and superior machining accuracy
Technical Specifications
| Particulars | Unit | CNC200-3A | CNC200-3B | CNC200-4A | CNC200-4B | CNC200-5A | CNC200-5B |
|---|---|---|---|---|---|---|---|
| Swing Over Bed | mm | 450 | 450 | 450 | 450 | 450 | 450 |
| Standard Turning Dia. | mm | 270 | 270 | 270 | 270 | 270 | 270 |
| Max. Turning Dia. | mm | 330 | 330 | 330 | 330 | 330 | 330 |
| Max. Turning Len. | mm | 300 | 300 | 400 | 400 | 500 | 500 |
| Slides | |||||||
| X-Axis Travel | mm | 180 | 180 | 180 | 180 | 180 | 180 |
| Z-Axis Travel | mm | 300 | 300 | 400 | 400 | 500 | 500 |
| Rapid Feed (X & Z) | m/min | 24 | 24 | 24 | 24 | 24 | 24 |
| Main Spindle | |||||||
| Spindle Motor | kW | 5.5 / 7.5 | 7.5 / 11 | 5.5 / 7.5 | 7.5 / 11 | 5.5 / 7.5 | 7.5 / 11 |
| Max. Spindle RPM | rpm | 3500 | 3500 | 3500 | 3500 | 3500 | 3500 |
| Spindle Nose | A2-5 | A2-6 | A2-5 | A2-6 | A2-5 | A2-6 | |
| Spindle Bore | mm | 56 | 65 | 56 | 65 | 56 | 65 |
| Max. Bar Capacity | mm | 44 | 52 | 44 | 52 | 44 | 52 |
| Chuck Size | 165 | 200 | 165 | 200 | 165 | 200 | |
| Turret | |||||||
| No. of Stations | 8/12 | 8/12 | 8/12 | 8/12 | 8/12 | 8/12 | |
| Max. Boring Bar Dia. | mm | 40 | 40 | 40 | 40 | 40 | 40 |
| Tool Size | mm | 25x25 / 20x20 | 25x25 / 20x20 | 25x25 / 20x20 | 25x25 / 20x20 | 25x25 / 20x20 | 25x25 / 20x20 |
| Tailstock | |||||||
| Quill Dia. | mm | 80 | 80 | 80 | 80 | 80 | 80 |
| Quill Taper | MT-4 | MT-4 | MT-4 | MT-4 | MT-4 | MT-4 | |
| Quill Stroke | mm | 110 | 110 | 110 | 110 | 110 | 110 |
| Adjustable Thrust | kgf | 300 | 300 | 300 | 300 | 300 | 300 |
| Accuracy | |||||||
| Positioning Accuracy | mm | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 | 0.010 |
| Repeatability | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Other Data | |||||||
| Machine Weight (Approx.) | kg | 3200 | 3300 | 3200 | 3300 | 3300 | 3400 |
| Machine Dimensions (W×L×H) | mm | 2350×1360×1750 | 2350×1360×1750 | 2350×1360×1750 | 2350×1360×1750 | 2350×1360×1750 | 2350×1360×1750 |
