CNC Gear Hobbing Machine

Product Categories



Need help!

Got questions or need assistance with your Industry needs?

+91 98104 10447

sales@himshivmachines.in

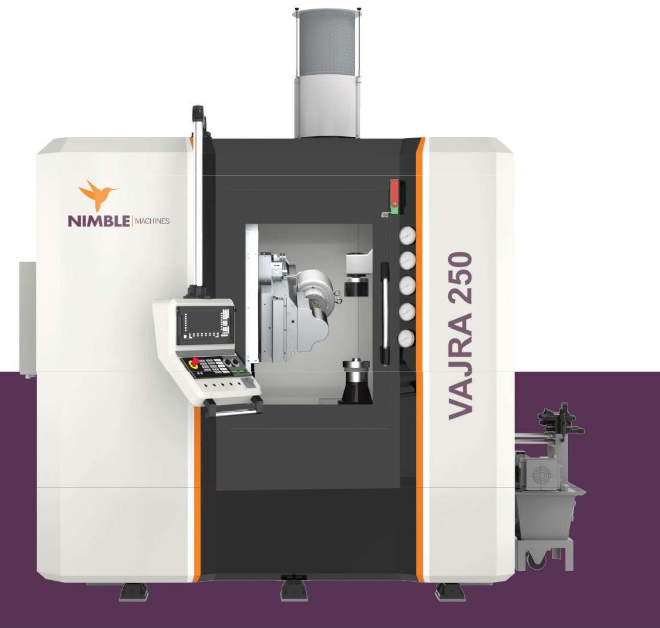

VAJRA series Gear Hobbing Machines are 6 Axis Gear Less Gear Hobbing Machines with a stiff Electronic Gearbox (EGB) to give the best synchronization to generate the most accurate gear profiles. These machines are designed to be structurally rigid while UCRIDE ® technology ensures reduced vibration and higher dampening effect.

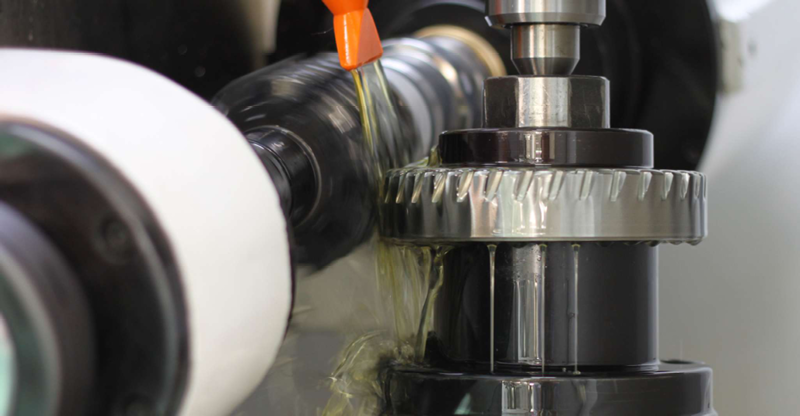

VAJRA Machines have been incorporated with the latest technology such as Direct-drive for Hob spindle and Work table. This enables our machine to achieve higher hob speeds with the latest cutting tools to give high productivity and quality. Hob head, having a precision spindle bearing arrangement, enables gear cutting. It is driven by a powerful built-in motor capable of delivering ample torque.

CNC Gear Hobbing Machines are advanced gear cutting systems designed for high-precision manufacturing of spur gears, helical gears, splines, sprockets, and worm gears. These machines ensure superior accuracy, high productivity, and reliable performance in modern manufacturing industries.

Technical Specifications


Description Units Vajra 130 Vajra 250 Vajra 400
Nominal workpiece diameter mm 150 250 400
Max. module (in steel of 60-70kg/mm2 tensile strength) mm 3 6 8
Diameter of table mm 150 250 400
Center distance between Work Table and Hob axis (Max/Min) mm 210 / 30 230 / 30 300 / 30
Table top face to bottom face of support arm (Max/Min) mm 580 / 230 630 / 230 630 / 230
Distance between table top & Hob head center (Max/Min) mm 550 / 250 600 / 250 600 / 250
Maximum Hob Dia x Length mm Ø90 x 100L Ø180 x 180L Ø180 x 180L
Taper of the Hob arbor - HSK-C63 HSK-C63 HSK-C63
Hob shift mm 120 170 170
Table speed, Max rpm 150 150 150
Hob speed (Infinitely variable) rpm 1800 1800 80-800 / 80-1800
Axial rapid traverse mm/min 1 to 10000 1 to 10000 1 to 10000
Radial rapid traverse mm/min 1 to 10000 1 to 10000 1 to 10000
Tangential traverse mm/min 1 to 10000 1 to 10000 1 to 10000
Spindle Power kW 9 12 / 18 14 / 27
Max. swivel of Hob head deg ±45 ±45 -35 to +45
Controller - Siemens 828D / Fanuc Oi-MF Plus Siemens 828D / Fanuc Oi-MF Plus Siemens 828D / Fanuc Oi-MF Plus
Voltage V 415 ±6% 415 ±6% 415 ±6%
Frequency Hz 50 ±3% 50 ±3% 50 ±3%
Total connected load kVA 30 33 55
Weight of the machine (Approx.) kg 8000 10000 13500

*Please note machine specifications & dimensions may change without prior notice



Standard Features

Our CNC Gear Hobbing Machine planning and strategy services focus on designing tailored automation solutions that align with your business goals.

  • 6 Axis CNC controlled
  • Direct Drive technology in spindle and work table
  • High precision Electronic gear box (EGB)
  • Softwares suitable for Hobbing Spur, helical, Sprocket and Spline
  • Servo controlled Hob Shift
  • High Clamping torque on the swivel axis

Frequently asked questions

We serve high-precision manufacturing sectors including automotive, aerospace, defense, gear and transmission, heavy engineering, and industrial equipment. Our solutions are designed to meet OEM standards, delivering accuracy, repeatability, and production efficiency across critical machining applications.

We ensure product quality through stringent quality control protocols, precision engineering practices, and the use of high-grade components. Every machine undergoes rigorous inspection, alignment checks, and performance testing to meet OEM standards for accuracy, reliability, and repeatability.

We integrate sustainability through energy-efficient machine design, optimized material utilization, and waste reduction practices across our manufacturing processes. Our focus on durable engineering and lifecycle efficiency minimizes environmental impact while ensuring long-term operational performance.

Yes, we provide fully customized solutions tailored to specific production requirements. Our engineering team works closely with clients to design and configure machines based on application needs, ensuring optimal performance, precision, and seamless integration into existing workflows.

We prioritize workplace safety through strict adherence to industry safety standards, robust machine guarding, and operator-centric design. Our processes include regular safety audits, risk assessments, and compliance-driven protocols to ensure a safe, reliable, and controlled manufacturing environment.
