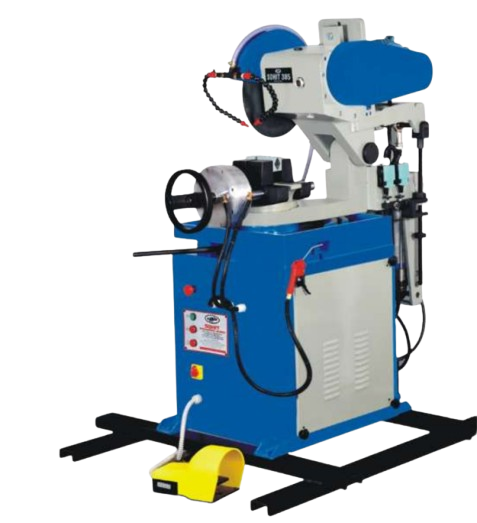

Features
- Newly designed Heavy Duty Gearbox with all hardened and
ground helical gears
- Zero backlash for life ensuring smooth cutting even under
heavy load
- Perfectly suitable for SS pipe and high carbon tube cutting
with maximum blade life
- Semi-automatic operation – Auto clamp, auto cut, manual
feed with matrix stopper
- Feed system: Hydro-pneumatic clamping with pneumatic
operation
- Optional VFD fitting for variable RPM and overload
interlock protection
- Optional input pneumatic pressure interlock
Technical Specifications
| Main Motor HP |
3 HP / ABB Make |
| Coolant Motor |
0.1 HP |
| Output RPM |
35 / 90 RPM |
| Total Weight |
600 Kg |
| Dimensions (Floor) |
2.6 ft × 3.5 ft |
| Saw Angle |
+45° to 90° to -45° |
| Round Pipe |
114 mm |
| Square Pipe |
100 × 100 mm |
| Round Bar (MS) |
50 mm |
| Square Bar (MS) |
50 × 50 mm |
| UP TO W.T. / UP TO OD |
0.8 |
2.0 |
4.0 |
6.0 |
9.0 |
| 25 |
OK |
OK |
OK |
OK |
OK |
| 50 |
OK |
OK |
OK |
OK |
OK |
| 70 |
OK |
OK |
OK |
OK |
Max. Cutting Capacity |
| 90 |
OK |
OK |
OK |
Max. Cutting Capacity |
NOT POSSIBLE |
| 110 |
OK |
OK |
OK |
Max. Cutting Capacity |
NOT POSSIBLE |
